Tektronix TBS2000B Digital Storage Oscilloscope

Bandwidth:

70MHz 100MHz 200MHz

Analog Channel:

2 4

The new TBS2000B Digital Storage Oscilloscope is great at performing an oscilloscope's most important jobs - looking at and measuring signals. See more with its bigger 9-inch display with 15 horizontal divisions for more time per screen and 5M record length to capture long time windows. Measure more with handy cursors and powerful 32 automatic measurements. Share more with Wi-fi connectivity and 100-BaseT Ethernet port. This affordable scope delivers the performance you need.

Model: -. Category: Oscilloscope. Tags: Tektronix. digital oscilloscope. bench oscilloscope.

Description
Additional Information

Bandwidth

70MHz, 100MHz, 200MHz

Analog Channel

2 Channel / 4 Channel

Record Length

5M points

Sampling Rate

2GS/s

Warranty

5 years

Manufacturer

Tektronix

Key features

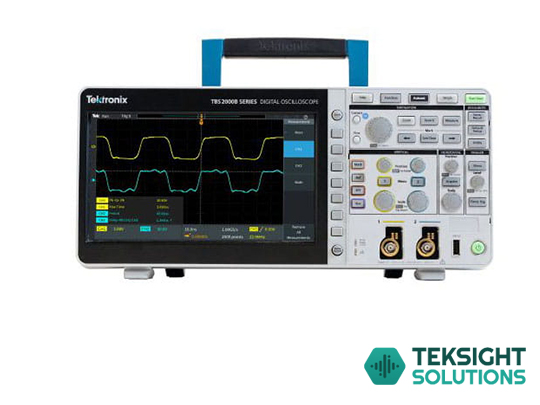

9-inch WVGA color display with 15 horizontal grids shows 50% more signal
TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
New front-end design enables more accurate measurements
32 automated measurements, and FFT function for quick waveform analysis
Search and Mark features for easy identification of events that occur in the acquired waveform
HelpEverywhere provides helpful on-screen tips for new users
Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
The instrument user interface and the front panel overlay is translated into 10 languages

Connectivity

USB 2.0 host port on the front panel for quick and easy data storage

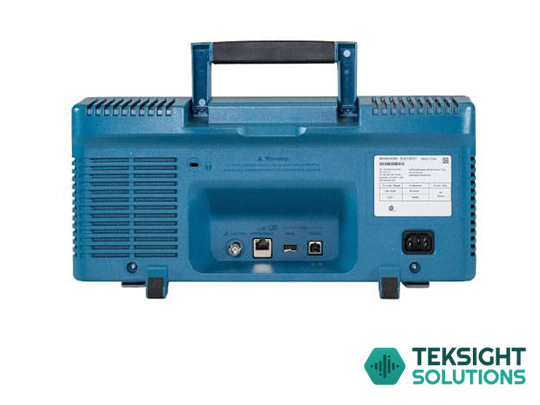

USB 2.0 device port on rear panel for easy connection to a PC
10/100BASE-T Ethernet port for remote control over LAN
Wi-Fi interface provides wireless communications capability support

Education

Courseware function presents lab exercise guidance on the display
Fully compatible with TekSmartLab lab management software for education
Autoset, Cursors and Automated measurements can be disabled to help educators to teach basic concepts to students
