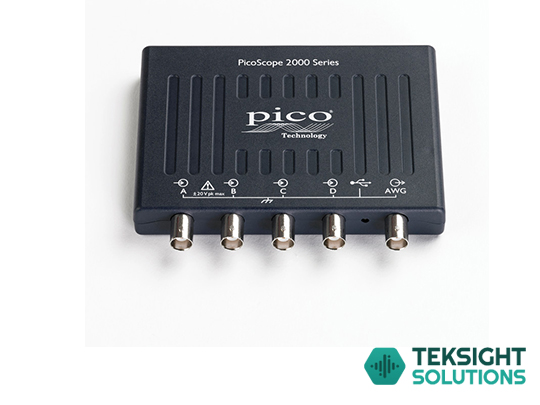

PicoScope 2000 Series
Most Affordable
Like a benchtop oscilloscope, only smaller and better
- 2 channel, 4 channel and MSO models
- 6 instruments in one
- Ultra-compact design
- Up to 100 MHz bandwidth
- Up to 128 MS buffer memory
- Decode 16 serial protocols as standard
- USB connected and powered
- Windows, Linux and Mac software
2000A Model | 2000B Model | 2000A & B MSO Model | |
Description | Power and performance
in your hand | Benchtop performance
in a pocket-sized scope | Mixed signal
oscilloscopes |
Channels | 2 or 4 | 2 or 4 | 2 analog + 16 digital |
Outputs | FG + AWG 100 kHz /
1 MHz | FG + AWG 1 MHz | FG + AWG 1 MHz |
Analog bandwidth | 10 to 25 MHz | 50 to 100 MHz | 25 to 100 MHz |
Sampling rate | 100 to 500 MS/s | 500 MS/s to 1 GS/s | 500 MS/s to 1 GS/s |
Resolution | 8 bits (12 bits) | 8 bits (12 bits) | 8 bits (12 bits) |
Capture memory | 8 kS to 48 kS | 32 MS to 128 MS | 48 kS to 128 MS |
Power | USB | USB | USB |
Your complete test & measurement laboratory
You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Mixed signal models also add a 16 channel logic analyzer. A complete electronics lab in one compact, low-cost, USB-powered unit.
The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.
The PicoScope 2000B models have the added benefits of deep memory (up to 128 MS), higher bandwidth (up to 100 MHz) and faster waveform update rates. PicoScope 2000B models give you the performance to carry out advanced analysis of your waveforms. They are ideal for design, debug and serial decoding.
