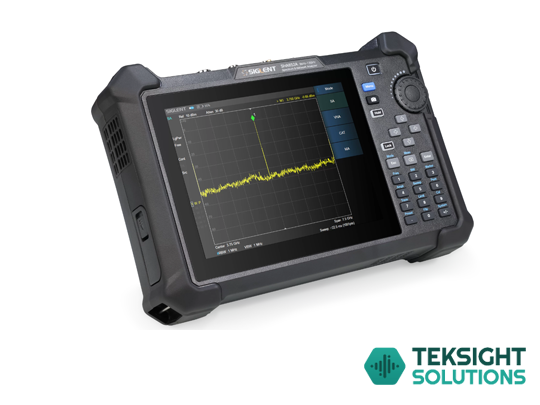

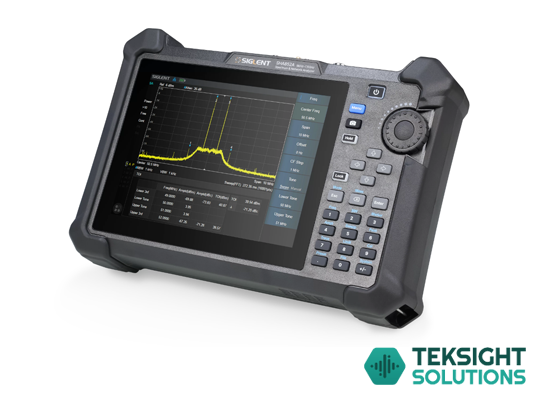

SHA850A Series Handheld Spectrum / Vector Network Analyzer

Standard SA and CAT mode, optional VNA mode
Frequency Range from 9 kHz up to 7.5 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-104 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
114 dB Dynamic Range in VNA mode (Typ.)
Channel power, ACPR, Harmonics, and TOI measurement option
Standard preamplifier, 8.4” touch screen, 4 hours working time
GPS location and logging

Model: SHA850A. Category: Spectrum Analyzer. Siglent Spectrum Analyzer. Tags: Spectrum Analyzer. Siglent.

Description
Additional Information

SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications.

With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
