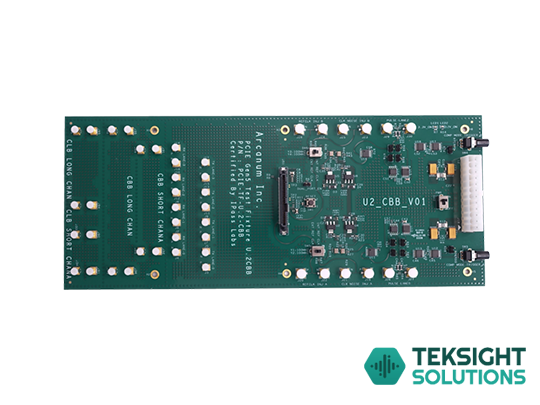

U.2 (NVMe) PCIe 5.0 Test Fixtures

There are three separated boards: two CLBs and one CBB.

  • Signal Integrity Board for U.2(SFF-8693) Physical Layer Conformance.
  • CLB supports PCIe5.0 (32GT/s) used for testing Transmitters.
  • CLB needs additional Gen5 CEM (SIG-REV4) ISI Board for the testing.
  • CBB supports PCIe5.0 (32GT/s) used for testing Receivers.
  • MMPX connector is 100% compatible with PCI-SIG CEM ISI board.
  • Real testing result of loss budget is 6.71 dB

Model: PCIE5-TF-U.2-CBB/CLB. Category: . Tags: . .
