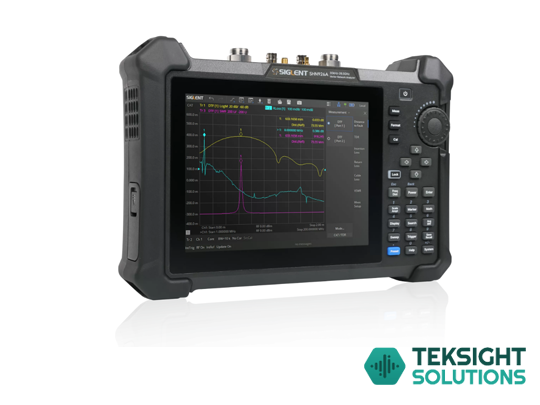

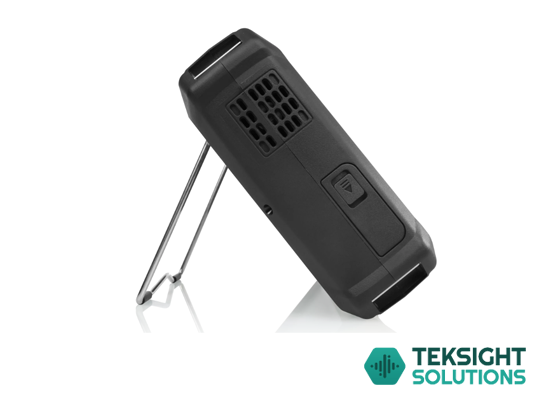

SHN900A Portable Vector Network Analyzer

2 port S-parameters, Time Domain, and Pulse Measurements
Standard VNA and cable test mode with optional SA mode
Frequency Range: 30 kHz~26.5 GHz
Range of IFBW: 10 Hz~3 MHz
Dynamic Range: 110 dB (typ.)
Handheld instrument with 4 hour battery life and standard bias-Tee
Standard GPS, Time and Location Information Saving
Enhanced TDR with eye diagram simulation option

Model: SHN900A. Category: Vector Network Analyzers. Modular Vector Network Analyzer. USB Vector Network Analyzer. Siglent Vector Network Analyzer. Tags: Network Analyzers. Siglent.

Description
Additional Information

SHN900A series portable vector network analyzer with frequency range up to 26.5GHz, integrates vector network analysis, time domain analysis, spectrum analysis, and standard cable and antenna analysis. It is specially designed for portable and flexible testing of RF components, cables, and systems in R&D, production, maintenance and communications, antenna base stations, and automotive electronics.

The SHN900A provides a portable, easy to use design for complex RF measurements. The SHN900A can operate as a cable and antenna tester including built-in DC voltage bias, a full 2-port vector network analyzer with advanced TDR measurements, pulse measurements, pass-fail limit testing, and complete S-parameters. The SHN900A is a highly integrated, multi-mode RF test system for use in the field and on the line with a 4-hour battery life and a mechanical package suitable to these complex environments.
