USB High Speed Signal Quality Test Fixture Set
The original model name used by USB-IF: USB2SIGQUAL
The USB High Speed Signal Quality Test Fixture Set contains two types of test fixtures:
- USB-A HS Device SQ Fixture (Model Name: USB-TF-HS-Device-V21)
- USB-A HS Host SQ Fixture (Model Name: USB-TF-HS-Host-V20)
Approved by USB-IF, this text fixture set is designed for electrical testing on USB-A devices and USB-A hosts.
Application
USB-A HS Device SQ Fixture
- High-Speed Device Signal Quality Test (EL_2, 4, 5, 6, and 7)
- Eye Pattern Test
USB-A HS Host SQ Fixture
- High-Speed Host Quality Test (EL_2, 3, 6, and 7)
- Eye Pattern Test
Specification
USB-A HS Device SQ Fixture
- USB-A Receptacle Connector
- Two USB-B Connectors
- 2×3 Pin Headers
- Slide Switch
- Two SMA Connectors
- Dimension: 70mm x 50mm

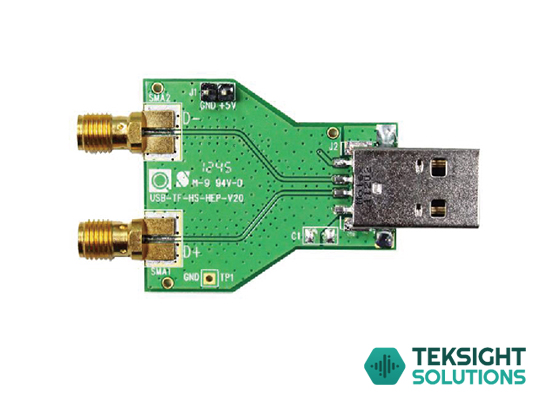

USB-A HS Host SQ Fixture

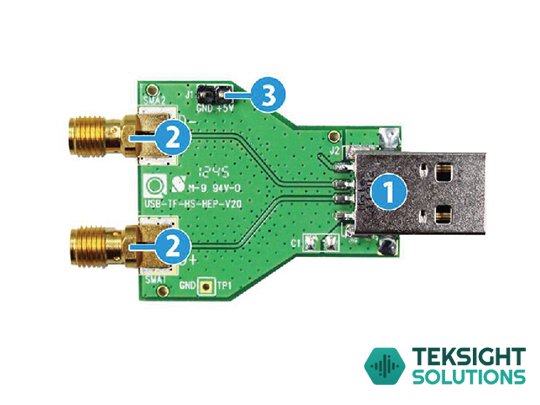

- USB-A Plug Connector
- Two SMA Connectors
- 1×2 VBUS Pin Headers
- Dimension: 32mm x 35mm
This test fixture set includes following cables:
- USB 2.0 A TO B CABLE L 135mm x 1
- USB 2.0 A TO B CABLE L 1M x 2
- USB 2.0 A TO MICRO B CABLE L 135mm x 1
-
