TBMA1 Biconical Antenna

The TBMA1 is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is ideal for radiated noise EMC pre-compliance testing and for generating defined field strength.

It is characterized from 30 MHz to 1 GHz and has a directional pattern similar to a dipole.

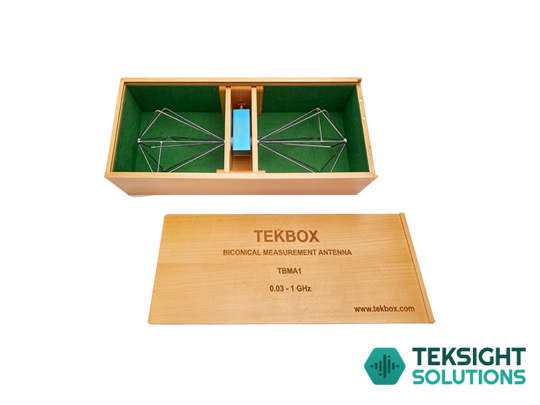

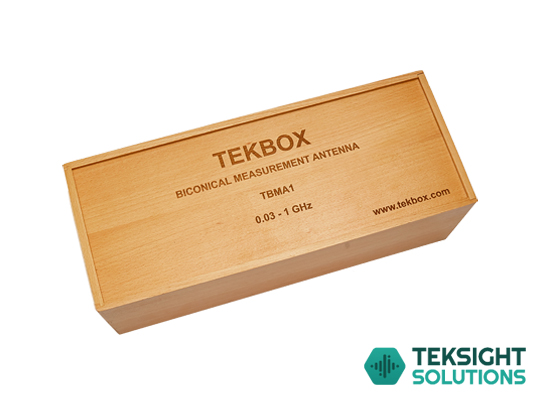

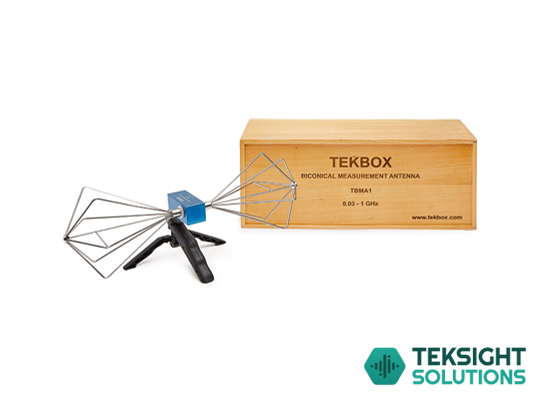

The TBMA1 comes in a solid beech wood case, together with a “pistol-grip” tripod. A standard ¼” thread makes it easy to connect it to most standard tripods.

The elements are corrosion resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore they are protected against build-up of static charge.

Model: TBMA1. Category: . Tags: .
Share:

Specifications

  • Type: passive biconical
  • Frequency range: 30 MHz – 1000MHz
  • Nominal impedance: 50 Ω
  • Maximum continuous input RF power: 2 W
  • Connector: N type female
  • Isotropic gain: -42.15 … 1.78 dBi
  • Antenna factor: 16.30 … 41.91 dB/m
  • Voltage Standing Wave Ratio (VSWR) Max < 2.8
  • Length: 430 mm (17 “) tip-to-tip
  • Diameter: 160 mm (6.3 “)
  • Depth: 163 mm (6.4 “) including housing
  • Weight: 0.46 kg (1.01 lbs)
  • Tripod Adapter Thread Size: ¼”
