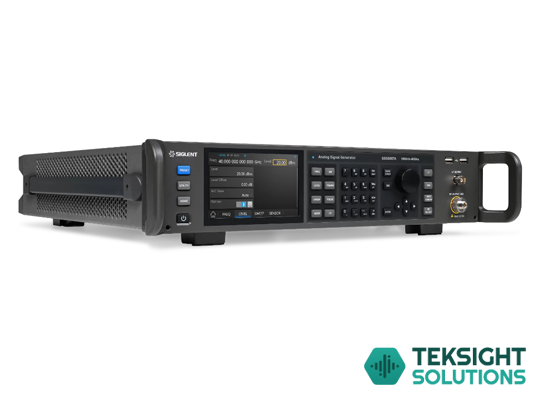

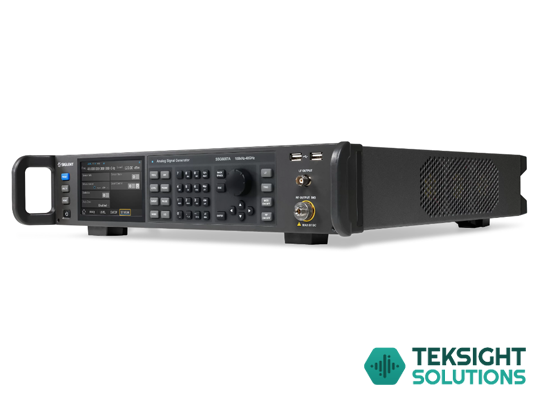

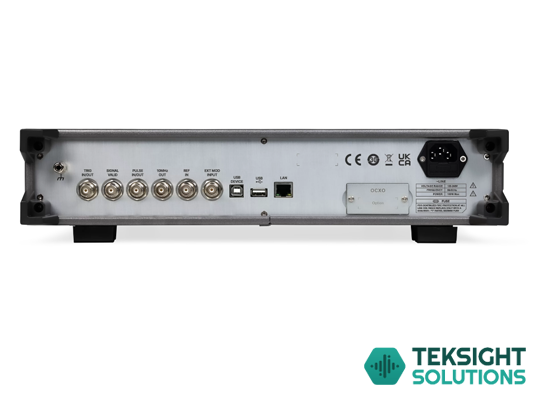

SSG6000A Series Microwave Analog Signal Generator

Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
Level setting range: -130 dBm ~ 24 dBm
Phase Noise: -135 dBc / Hz @ 1 GHz, 10 kHz offset (typ.)
Level error ≤ 0.7 dB (typ.)
Standard AM/FM/PM modulation
Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
Pulse modulation and pulse train generator (option)

Model: SSG6000A. Category: RF Synthesizer. Siglent RF Generator. Tags: -

Description
Additional Information

In order to develop, test and optimize these more complex systems, the measurement technology must exceed the desired system performance. The SSG6000A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost.

SSG6000A Series RF Signal Generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source suitable for applications in R&D and production. SIGLENT provides a total solution backed by proven reliability and our standard 3 years warranty plus pre-sale and post-sale support. Coupled with solid RF performance, a flexible and pure signal, the SSG6000A is a complete solution that makes a great addition to any RF engineer’s workbench kit.
