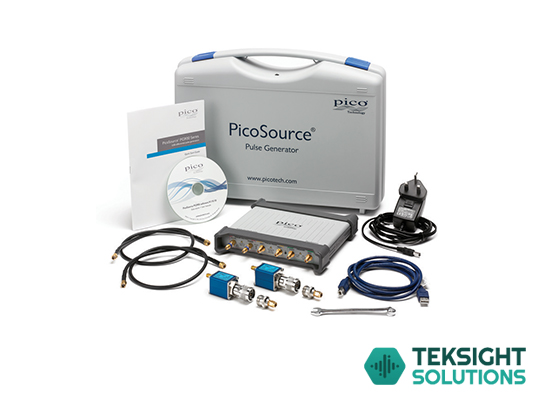

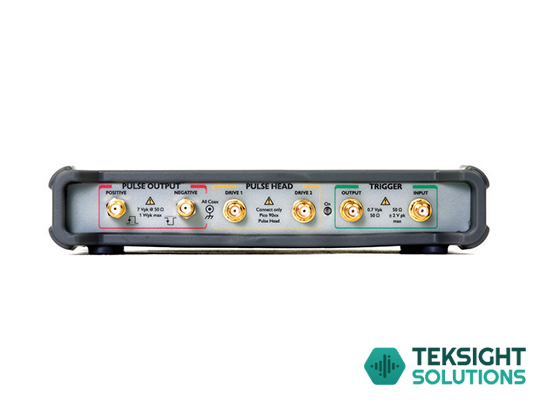

PicoSource PG900 Series
Model:
The PicoSource PG900 Series of fast-edge pulse generators offer transition times of less than 40ps.
Differential picosecond pulse generators
PG911 and PG914
- Integral 50 Ω SMA(f) Step Recovery Diode outputs
- < 60 ps transition time
- Dual 2.5 to 6 V variable amplitude outputs
- ±1 ns in 1 ps steps timing deskew
- 200 ns to 4 μs pulse width
- 1 μs to 1 s internal clock period
- < 3 ps RMS jitter relative to external trigger
- –20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode outputs
PG912 and PG914
- External 50 Ω N(m) positive and negative Tunnel Diode pulse heads
- < 40 ps transition time
- Dual > 200 mV fixed amplitude outputs
- ±200 ps in 1 ps steps timing deskew
- Inter-series N(f) – SMA(m) adapter included with Tunnel Diode pulse heads
The fast-transition pulse can stimulate a transmission path, device or network with a broad spectrum signal in a single instant. Such a pulse is very useful for many of the high-speed broadband measurements that we need to make; for instance in time-domain reflectometry, semiconductor test, gigabit interconnect and port test and in radar.
Differential high-speed data in particular dominates the measurement challenge in our digital, computing, interconnect and telecommunications systems. Surprisingly, cost-effective fast-transition differential pulse generators have been very hard to find ... until now!
Typical applications include:
- TDR/TDT network and match analysis
- Spectral and flatness measurements
- Timing, jitter and crosstalk determinations
